Hatachi Oil Flood Screw Air Compressor Air Cooled Type

Aircompressor oil flood (air -cooled)

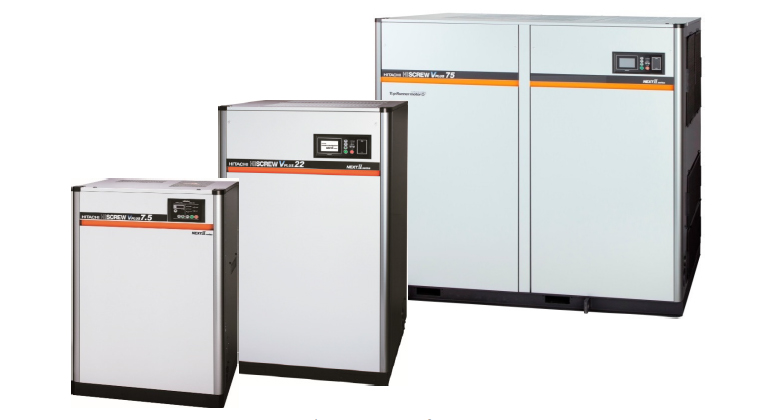

Inverter type

Motor Model Maximum Capacity
Output Pressure (m3/min)
(kw) (Mpa)
7.5 OSP-7.5VAN 0.83 1.03
11 OSP-11VANA 0.85 1.6
15 OSP-15VANA 2.1
22 OSP-22VANA 0.7 4

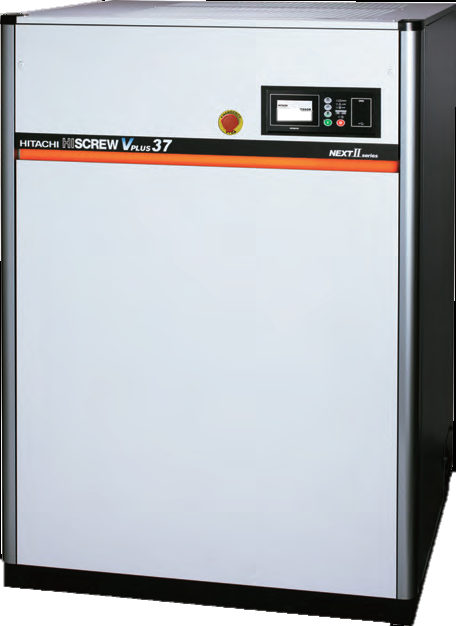

37 OSP-37VANA 6.8
55 OSP-55VAN 10

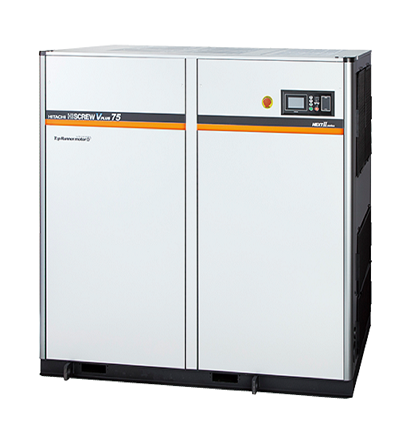

75 OSP-75VAN 13.2
100 OSP-100V5ALI 18.1
150 OSP-150V5AD 0.75 (0.85) 26.0 (24.1)



S AND M TYPE Oil flood (air-cooled)

Motor Model Maximum Capacity
Output Pressure (m3/min)
(kw) (Mpa)
7.5 OSP-7.5M5AN 0.7 (0.83) 1.03 (1.15)
11 OSP-11M5ANA 0.7 (0.85) 1.75 (1.6)
15 OSP-15S5ANA 2.35 (2.1)
OSP15M5ANA
22 OSP-22S5ANA 0.7 (0.85)0.1 4.0(3.7)<3.3>
OSP-22M5ANA
OSP-22M5AK 1.57 2.2
37 OSP-37S5ANA 0.7 (0.85)0.1 7.2(626)<5.8>
OSP-37M5ANA
OSP-37M5AK 1.57 3.7
55 OSP-55S5AN 0.7 (0.85)0.1 9.8(8.8)<8.1>
OSP-55M5AN
OSP-75S5AN 13.0(11.7)<10>
OSP-75M5AN
100 OSP-100S5ALI 0.7 (0.85) 18.1(16.7)
OSP-100M5ALI
110 OSP-110S5ALI 20.0(18.0)
OSP-110M5ALI
132 OSP-132S5AN 0.7 (0.85)0.1 25.5(23.3)<21.0>
OSP-132M5AN
150 OSP-150M5AD 0.75 (0.85) 26.0(24.1)

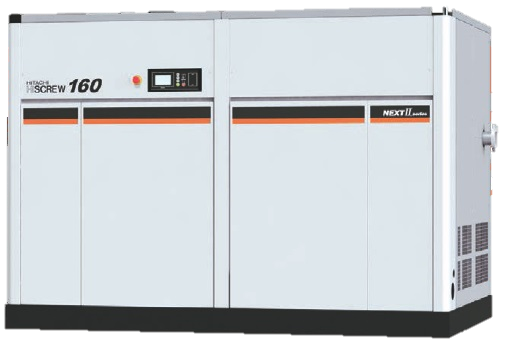

160 OSP-160S5AN 0.7 (0.85)0.1 29.5(27.2)<24.5>
OSP-160M5AN
