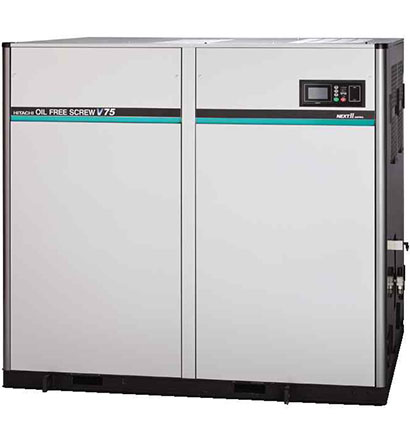

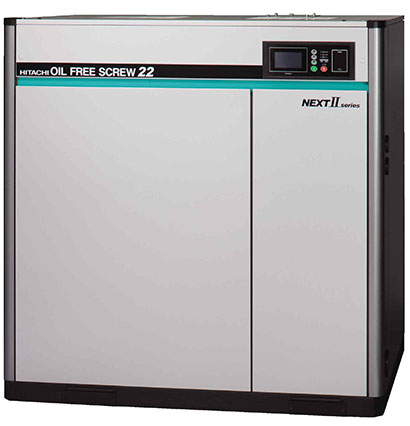

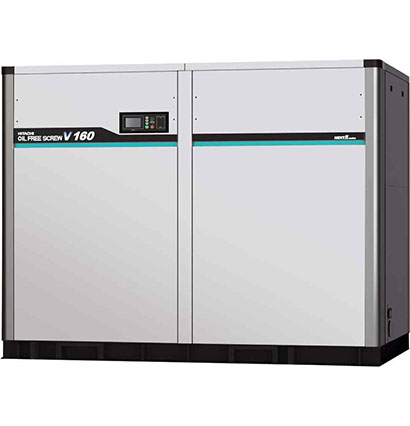

Hatachi Oil free screw Air compressor Air cooled Type (DSP Series)

Air cooled Inverter type Single -stage

Motor Model Maximum Capacity
Output Pressure (m3/min)
(kw) (Mpa)
22 DSP-22VA5I 0.39-0.69 4.3-3.4
37 DSP-37VA5I 6.4-5.0
55 DSP-55VA5I 8.2-6.4



Single -stage with air dryer built-in

Motor Model Maximum Capacity
Output Pressure (m3/min)
(kw) (Mpa)
22 DSP-22VAR5I 0.49-0.69 4.0-3.4
37 DSP-37VAR5II 6.0-5.0
55 DSP-55VAR5I 7.6-6.4



TWO-Stage ( ) Dryer built-in

Motor Model Maximum Capacity
Output Pressure (m3/min)
(kw) (Mpa)
22 DSP-37VAT(R)5 0.69 (0.88) 5.3(4.6)
37 DSP-55VAT(R)N 0.70 (0.93) 9.3(7.7)
55 DSP-75VAT(R)N 12.6(10.9)
100 DSP-100VA5MN 18.0 (15.4)



Single-Stage ( ) Dryer built-in

Motor Model Maximum Capacity
Output Pressure (m3/min)
(kw) (Mpa)
15 DSP-15A(R)5II 0.69 (0.39) 2.0(2.5)
22 DSP-22A(R)5II 3.4(4.0)
37 DSP-37A(R)5III 5.0(5.9)
55 DSP-55A(R)5II 6.4(8.0)

** Dryer built-in model discharge pressure are 0.69 Mpa

Two Stage ( ) Dryer built-in

Motor Model Maximum Capacity
Output Pressure (m3/min)
(kw) (Mpa)
22 DSP-22AT(R)5I 0.69(0.88) 3.6(3.1)
30 DSP-30AT(R)5I 4.6(3.9)
37 DSP-37AT(R)5I 5.3(4.6)
45 DSP-45AT(R)5N 0.70(0.93) 7.4(6.2)
55 DSP-55AT(R)5N 13.0(10.5)
75 DSP-75AT(R)5N 16.6(13.9)
90 DSP-90A5MN 18.0(15.4)
100 DSP-100A5MN 20.5(17.3)
120 DSP-120A5MN 22.5(19.0)
132 DSP-132A5 0.75(1.0) 25.0(20.0)
145 DSP-145A5 27.5(22.5)
160 DSP-160A5 35.5 (30.0)
200 DSP-200A5 9.2(7.2)
240 DSP-240A5 40.0(32.5)
